Technical Specifications #
Size (WxDxH): 2245 x 1370 x 2289 (mm), 88.39 x 53.94 x 90.12 (in)
Minimum Clearance (in): 12 (Front), 24 (Right), 5 (Left), 32 (Back)
Minimum Distance from Ceiling (in): 4
Inner workspace of EQUASHIELD® Pro (WxD): 88.2 x 29.2 (in)
Weight: 1,206 (kg), 2653 (lbs)
Doorway Clearance Necessary for Installation: 0.99 (m), 39 (in)
Corridor Width Requirement (to mitigate 90º turns): 1.50 (m), 59 (in)
Air Outflow Max: 1,400 m3/h, 825CFM
Power Supply (3 Phase): 380 or 480V; 16A
Networking Interface: 1x RJ45 female
Minimum clean room requirement: ISO Class 7
Cabinet Area: Iso Class 5
Product Capacity #
Vials
Storage Capacity: 60 vials (10ml to 100ml)
Most commercially available vials of 13mm and 20mm neck size
Syringes
Conveyor Capacity: 67 Syringe Units, sizes 3-60ml
IV Bags
8 Simultaneous Workstations
Most commercially available IV Bags with ISO-compatible IV spike ports ranging from 50ml to 1000ml

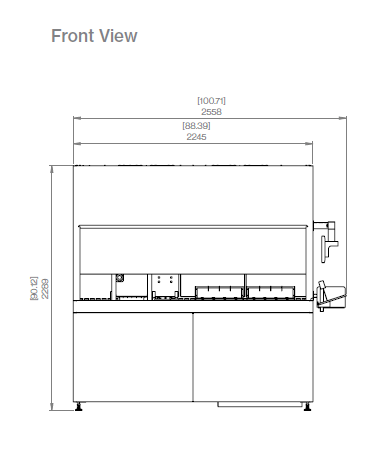

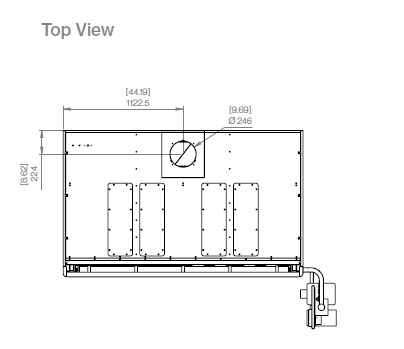

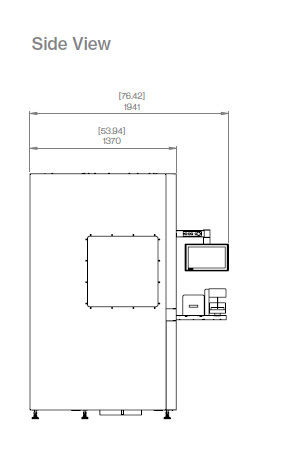

Dimensions #
Environmental Conditions #
The following environmental conditions shall be maintained
during the operation:
- Temperature: 20 to 25˚C
- Relative Humidity: MAX 85%
- Air pressure and cleanliness according to ISO Class 7 clean room requirements.
EMC Requirements #
IEC 60601-1-2 Edition 4.0 (2014).
Environment of intended uses:

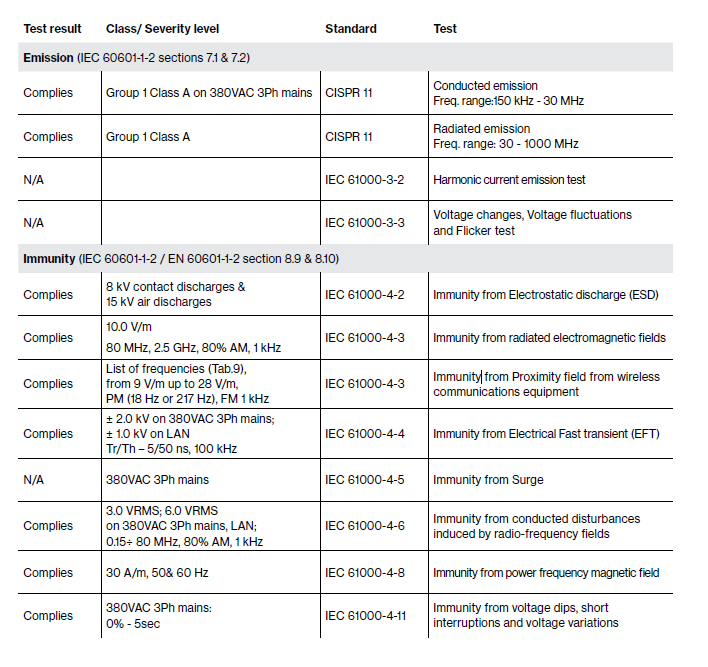

in Professional healthcare facility environment Summary of Test Results
