Hazards associated with handling of chemotherapy drugs are well documented1-11. Ensuring healthcare worker safety should be a priority and organizations are wise to invest significant time in development of a comprehensive HD safety programs.

Guidelines provided by NIOSH Alert1, ASHP recommendations2 and Proposed USP<800>3 offer a large number of steps needed to safely compound hazardous drugs. As healthcare shifts to a model where improved efficiencies and reduced labor and supply costs are critical, it is important that number of steps and time to compound a dose be considered when a closed system drug transfer device is being chosen.


The key objective of this study is to clarify the misperceptions surrounding CSTDs. Over the last 15 years, CSTDs have evolved in technology and offer various mechanism for containing vapor and protecting healthcare workers. This study aims at assessing various technologies for Hazardous Drug Compounding by performing a Time-Motion assessment. The study looks at both total steps and total time to compound a simulated dose of chemotherapy using the following ONB approved CSTDs:

  • BD PhaSeal
  • ICU ChemoLock
  • Equashield

The study will also qualitatively assess key attributes that lead to increase in efficiency.

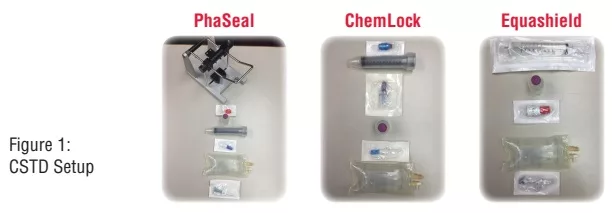

Each of the 3 tested CSTDs were assessed across the same set of compounding protocol to prepare an IV Piggyback dose from a liquid dose vial. Table 1 below outline the high level method and Figure 2 shows the CSTD Setup Structure.

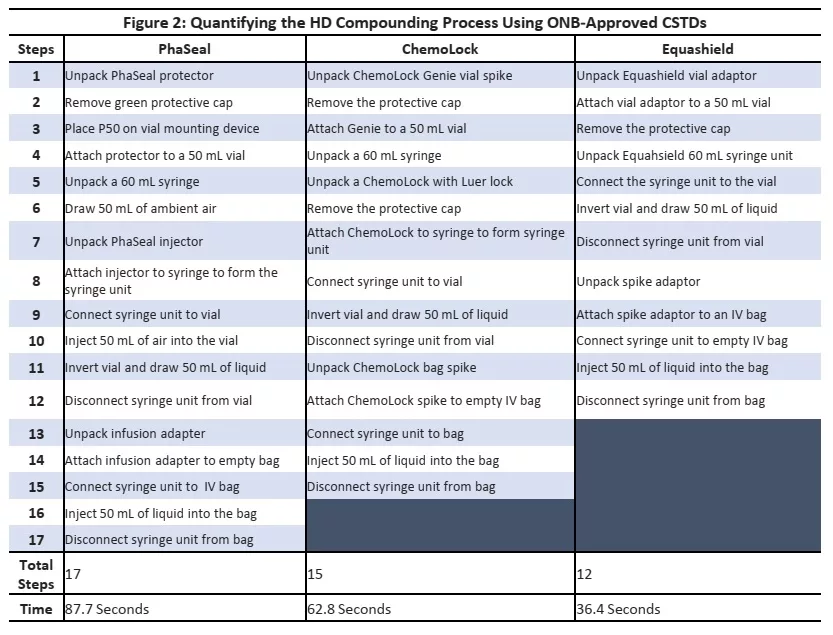

Figure 2 below summarizes outlines the process steps and time needed to compound a dose of chemotherapy using various CSTDs.

It must be noted that process steps and compounding mechanisms were different across CSTDs tested. The time required to compound a dose correlated with the number of steps needed to complete a preparation. Table 2 below outlines the key CSTD attributes that contribute the increase in efficiency of one system relative to another.

The process step that contributed to most time required to compound a dose with PhaSeal was the air displacement step. Due to product design, it was required to introduce premeasured air into the syringe prior to syringe adaptor connection.

Similarly, for ICU the largest time consuming step was the Push- Pull-Push technique for injection procedure of diluents. It must also be noted that both PhaSeal and ChemoLock required use of standard syringe, while Equashield offered closed-syringe bonded to syringe devices. Equashield also required the least number of steps and overall time to compound a dose given design attributes that lead to optimal efficiency of the product for use when compounding hazardous drugs within a pharmacy.


CSTDs are proven to reduce exposure to HDs during the drug compounding and administration processes. Contrary to common belief, when staff is properly trained and are experienced CSTD users, the time required to compound CSPs using CSTDs does not differ significantly from the time
it takes to compound with a needle and syringe. Although this analysis shows variability in the time required for compounding using the three CSTDs evaluated, all the CSTDs increase safety
without adding an untenable amount of time to work to the process.

Understanding the impact of CSTDs on pharmacy compounding workflow and output is critical. In addition to safety, CSTDs should facilitate efficiency. Critically reviewing the steps for using each CSTD and summarizing the differences in mechanical manipulation can help assess the time required to compound CSPs using CSTDs.

Once the number of steps required and the time for the compounding process are determined, multiplying these metrics by number of doses compounded daily, weekly and annually will allow managers to quantify the time required for compounding over a given time period. In this way, managers can determine workload requirements and monitor the need for additional personnel or the reduction of hours based on changing compounding volume.

Key take away from the study can be summarized below:

  • PhaSeal required the most steps to compound a dose (17 steps) while Equashield required the least (12 steps).
  • Similarly PhaSeal required over twice the time to compound a dose compared to Equashield
  • ChemoLock performed in the middle with 15 steps and 62.8 seconds to compound a dose

As hospital budgets are trimmed and focus on cost cutting increases, it is important to select a closed system that is both safe and efficient for compounding Hazardous Drugs.

Related Clinical Studies


Application of the 2015 proposed NIOSH vapor containment performance protocol for closed system transfer devices used during pharmacy compounding and administration of hazardous drugs

University of North Carolina

An Assessment of Exposed Syringe Inner Walls as a Route of Exposure from Hazardous Drugs

UNC Eshelman School of Pharmacy
#Head of Pharmacy

Syringe plunger contamination by hazardous drugs: A comparative study

Journal Oncology Pharmacy Practice


  1. Centers for Disease Control and Prevention. National Institute for Occupational Safety and Health. Preventing Occupational Exposures to Antineoplastic and Other Hazardous Drugs in Health
    Care Settings. Accessed June 16, 2015.
  2. American Society of Health System Pharmacists Council on Professional Affairs. ASHP Guidelines on Handling Hazardous Drugs. Am J Health-Syst Pharm. 2006; 63:1172-1193.
  3. United States Pharmacopeial Convention. General Chapter <800> Hazardous Drugs—Handling in Healthcare Settings. healthcare-settings. Accessed June 16, 2015.
  4. Lamm MH, Eckel S, Daniels R, Amerine LB. Using lean principles to improve outpatient adult infusion clinic chemotherapy preparation turnaround times. Am J Health-Syst Pharm. 2015;72(13):1138- 1146.
  5. Connor TH, Anderson RW, Sessink PJ, et al. Effectiveness of a closed-system device in
    containing surface contamination with cyclophosphamide and ifosfamide in an i.v. admixture area.
    Am J Health-Syst Pharm. 2002;59(1):68-72.
  6. Spivey S, Connor TH. Determination of sources of workplace contamination with antineoplastic drugs and comparison of conventional IV drug preparation versus a closed system.
    Hosp Pharm. 2003;38:135-139.
  7. Wick C, Slawson MH, Jorgenson JA, et al. Using a closed-system protective device to reduce personnel exposure to antineoplastic agents. Am J Health-Syst Pharm. 2003;60(22):2314-2320.
  8. Harrison BR, Peters BG, Bing MR. Comparison of surface contamination with cyclophosphamide and fluorouracil using a closed-system drug transfer device versus standard preparation techniques.
    Am J Health-Syst Pharm. 2006;63(18):1736-1744.
  9. Nyman H, Jorgenson J, Slawson MH. Workplace contamination with antineoplastic agents in a new cancer hospital using a closed-system drug transfer device. Hosp Pharm. 2007;42:219-225.
  10. Sessink PJM, Connor TH, Jorgenson JA, Tyler TG. Reduction in surface contamination with
    antineoplastic drugs in 22 hospital pharmacies in the US following implementation of a closed-system drug transfer device. J Oncol Pharm Pract. 2011;17(1):39-48.
  11. Clark BA, Sessink PJ. Use of a closed system drug-transfer device eliminates surface contamination with antineoplastic agents. J Oncol Pharm Pract. 2013;19(2):99-104.
