Mundus HD · Accuracy & technology
Mundus HD combines high precision mechanical control with independent image verification, confirming every fluid transfer as it happens.
Medication Each station within the Mundus HD incorporates
Error Protection
a verification and validation step, effectively minimizing the likelihood of human errors.

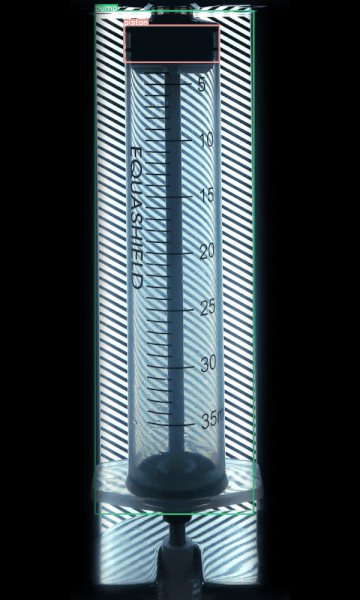

A 20 MP monochrome camera with sub pixel detection independently verifies plunger position in real time. The system continuously monitors the fluid path for bubbles and halts the preparation if an issue is detected.
Accuracy Calculator
The Mundus Accuracy Calculator provides an interactive demonstration of how syringe manufacturing tolerances affect printed graduation marks. The placement accuracy of the printed graduations on syringes is defined in ISO 7886-1. EQUASHIELD’s syringes are manufactured to tighter tolerances than the standard requires. By selecting a syringe size and withdrawal volume, users can visualize the impact of graduation placement variability and compare it against Mundus’ HD measured accuracy. The result is a clear understanding of why automated volumetric measurement can provide greater confidence than relying solely on the printed syringe scale.
Acceptable graduation reading
59.358 – 60.642mL
Mundus HD Accuracy Specifications
| Syringe Unit size (mL) | Mundus HD Specifications (mL) |
|---|---|
| 1 | ±0.016 |
| 3 | ±0.037 |
| 5 | ±0.054 |
| 10 | ±0.106 |
| 20 | ±0.194 |
| 35 | ±0.326 |
| 60 | ±0.642 |
accuracy testing
Results from 3,651 preparations across multiple syringe sizes, fluid viscosities, and preparation methods. 100% of preparations met acceptance criteria with zero outliers.
✓Real time dose verification. The only system that verifies dose accuracy in real time through a continuous feedback loop for highly precise dosing.
✓Second volumetric verification. An independent visual check confirms every measurement, providing a second layer of verification beyond the mechanical drive.

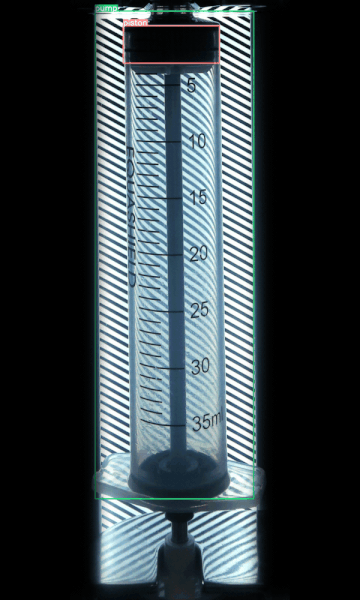

✓Automatic bubble detection & removal.
Detects and removes air from the fluid path before the dose proceeds.
✓Full vial utilization. The first fully automated approach to maximizing drug recovery by taking advantage of vial overfill.
✓Unrivaled visual documentation. A complete visual record of every preparation enables pharmacists to remotely verify every fluid transfer.
✓System performance monitoring. Continuous oversight of system operation helps ensure reliable, consistent performance.
Processing power to check and verify every dose in real time.
Independently verifies every fluid transfer and confirms every dose.
Validated software updates that keep the system current with the latest features and improvements.
Designed for dependable performance in high volume pharmacy operations.
Faster, more reliable measurement with real time verification and no weighing delay.
Manufacturing our own consumables lets us control the full tolerance chain, keeping dosing tight and repeatable.
No specific gravity database to build or maintain. No drug density conversions.
Minimal calibration with no frequent user recalibration.
Resistant to airflow, vibration, and electrical fluctuations that can affect scale based systems.
