Required Supplies: #
- Screwdriver (Philips head)
- Allen Key Set
- Components saved in Ziploc bags
- Securing devices
- Bubble Wrap
Step 1: Place the securing devices and bubble wrap on the devices. #

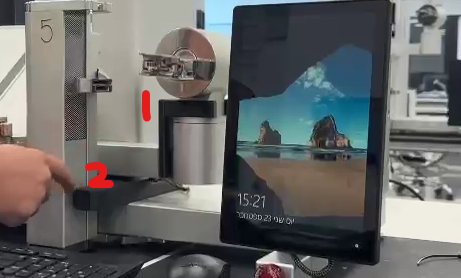

There are 2 plastic securing pieces: (can be white or black)
- Securing vial shakers
- Securing the lift

Gently secure these devices in place. This is critical to protect the equipment in transportation.

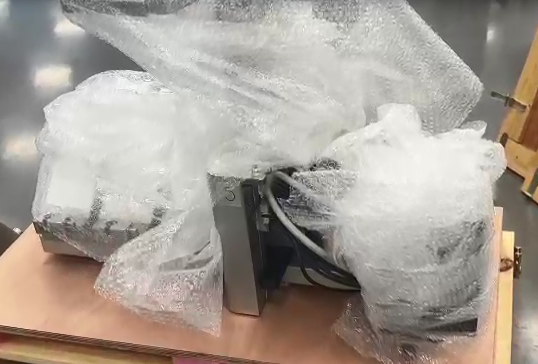

Then, wrap the whole device in bubble wrap (generously).

Step 2: Place each device onto its respective crate panel. #
The device will go into the larger crate. The main cabinet will go into the smaller crate.

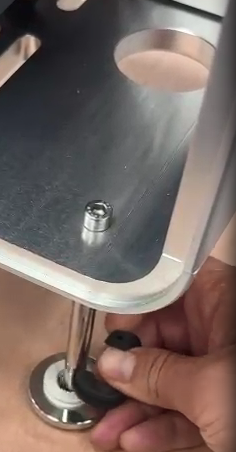

Step 3: Place the 2 white washers and the rubber around each leg of the device. #

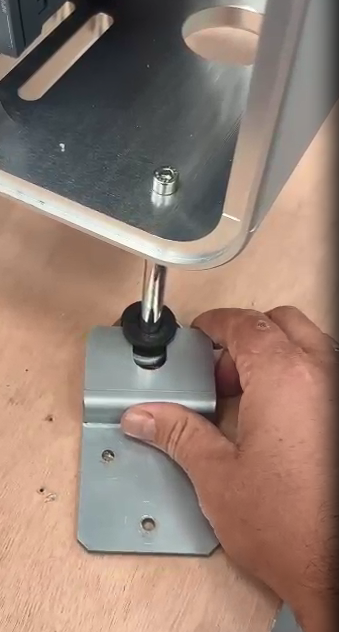

Step 4: Place the bracket in between the rubber and the white washers. #

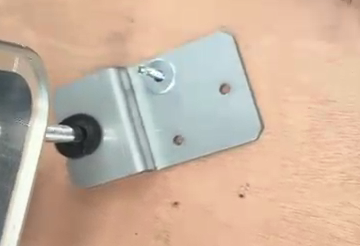

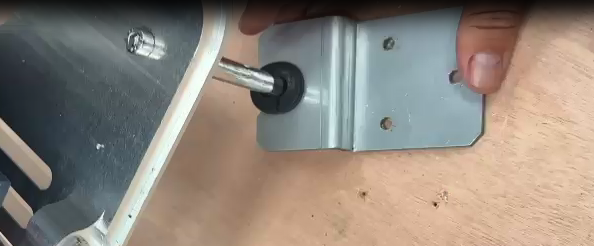

Step 5: Place the bracket on an angle, and screw it into position with the screws and washers. #
Note: You can only place 2 screws/washers into the bracket that is closest to the device screen.
