Step 1: Review of the Different Cables #
There are 6 cables:
- 1x Power Cable
- 3x USB connection
- 1x Type C
- 1x Communication cable
All of the cables (except the power cable) will be connected to the computer.
Step 2: Connect Power Cable #

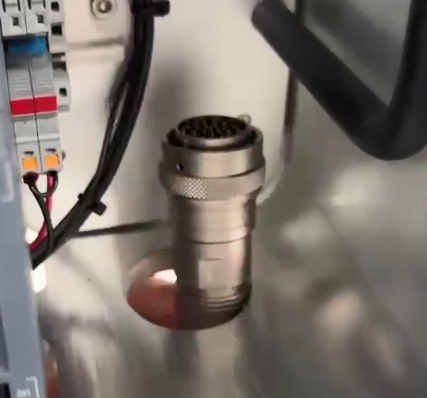

- Place the power cable through the hole at the bottom of the main cabinet.

2. Turn the requested port to ’12 o’ clock’ position.

3. Connect.

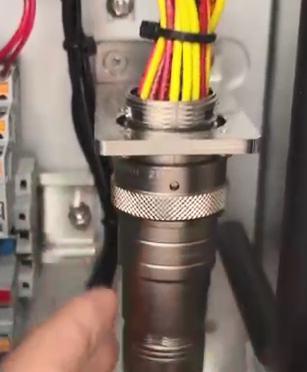

4. Tighten collar until click.

Step 3: Connect Remaining Cables #
- Place the remaining 5 cables through the hole at the bottom of the main cabinet.

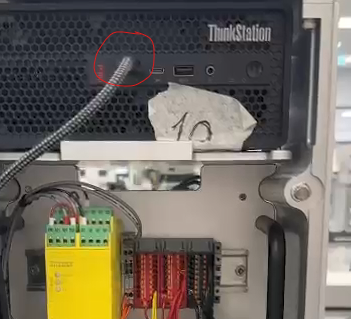

2. Connect the Type C cable to the computer.

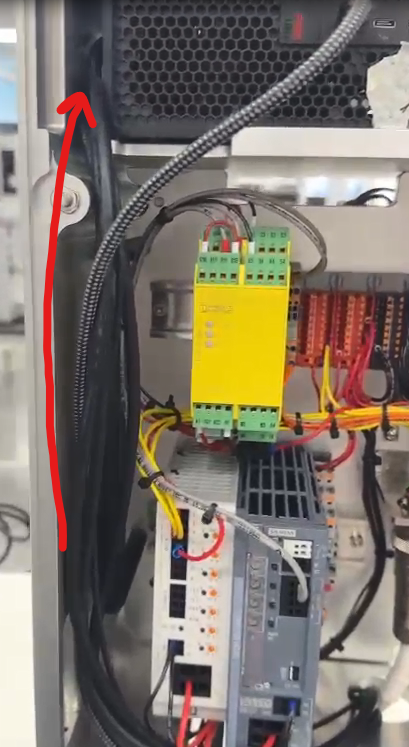

3. Feed the remaining 4 cables (3x USB, 1x Communication cable) to the backside of the computer.

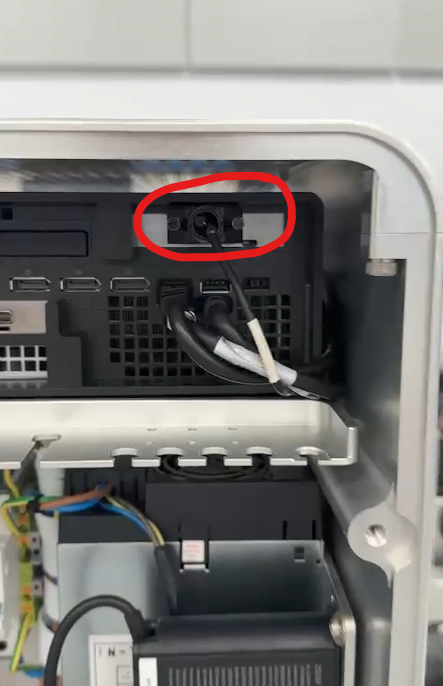

4. Connect the Communication cable.

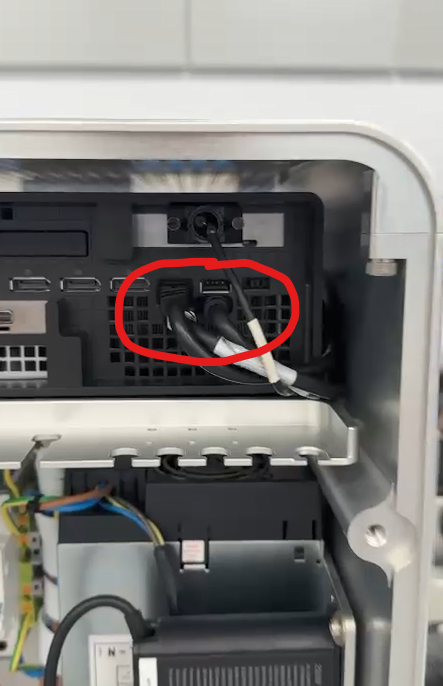

5. Connect 3 USB cables.

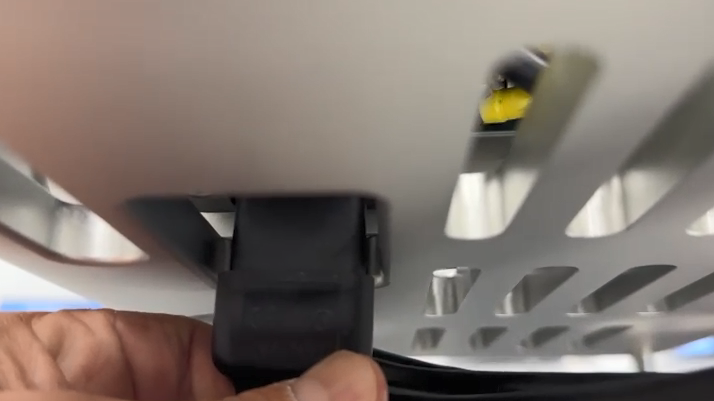

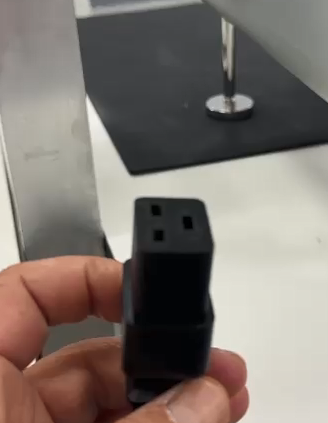

6. Connect the AC Power cable to the bottom of the main cabinet.
PRO TIP: Tilt the main cabinet for better visualization to connect the cable.
